Crank Trigger Wheel Kit V1 (Jeep® 4.0L '86-'06)

Crank Trigger Wheel Kit V1 (Jeep® 4.0L '86-'06)

Regular price $299.99 USD
Regular price Sale price $299.99 USD
Clearance Coming Soon
Shipping calculated at checkout.

This item is built to order

This item is currently out of stock, however we will build it for you! Expect a 1-2 week lead time on build before shipping.

This is the Original Boosted 4.0s Crank Trigger designed by @AKAxAuto


36-1 Pattern Trigger Wheel for aftermarket engine management systems, such as the MicroSquirt.

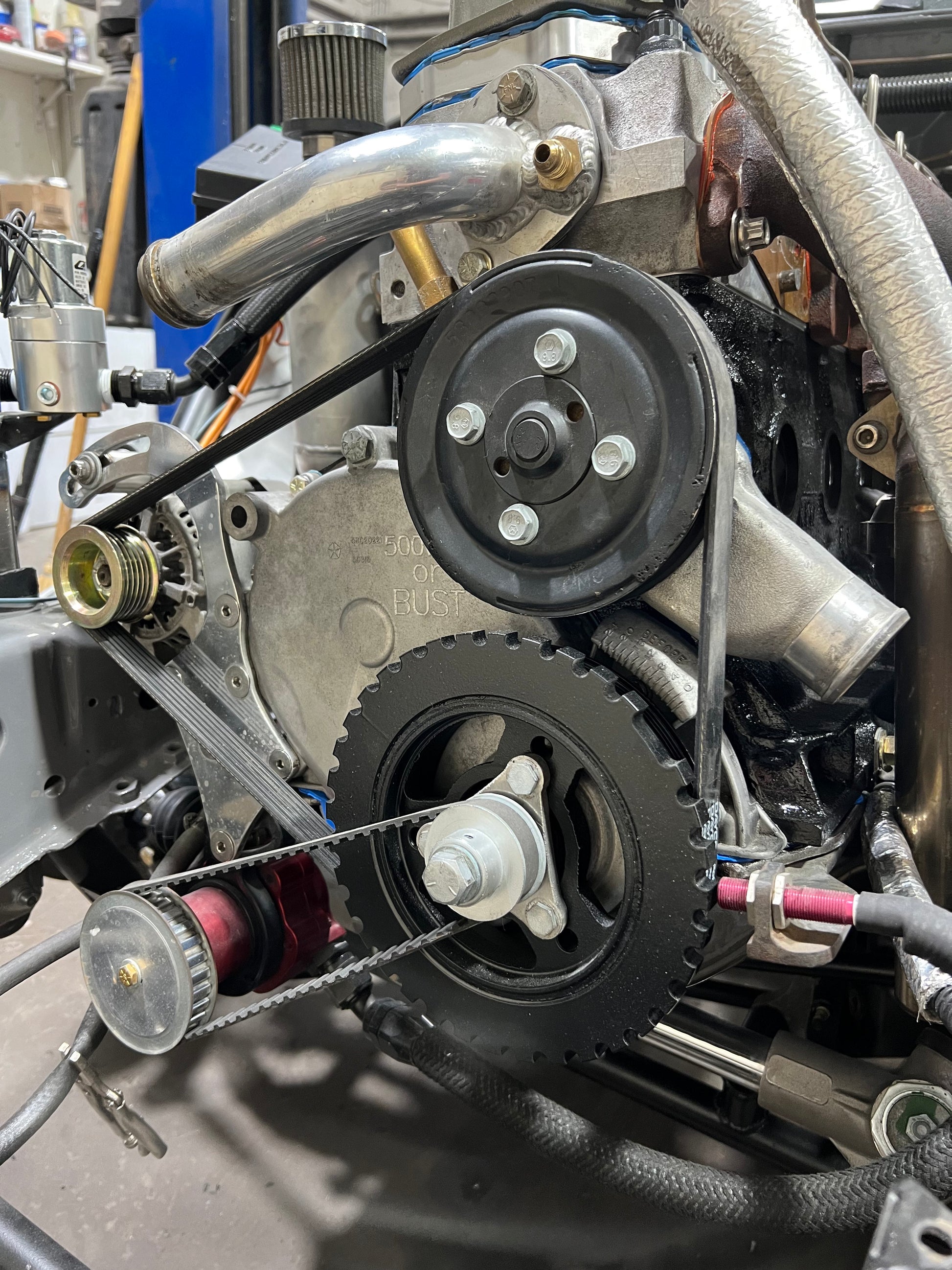

This is a factory replacement damper with the trigger pattern milled directly into it, negating the need to affix and align a bolt on trigger wheel. After machining, the dampers are rebalanced.

Fits AMC/Jeep 4.0L Inline 6 1986-2006

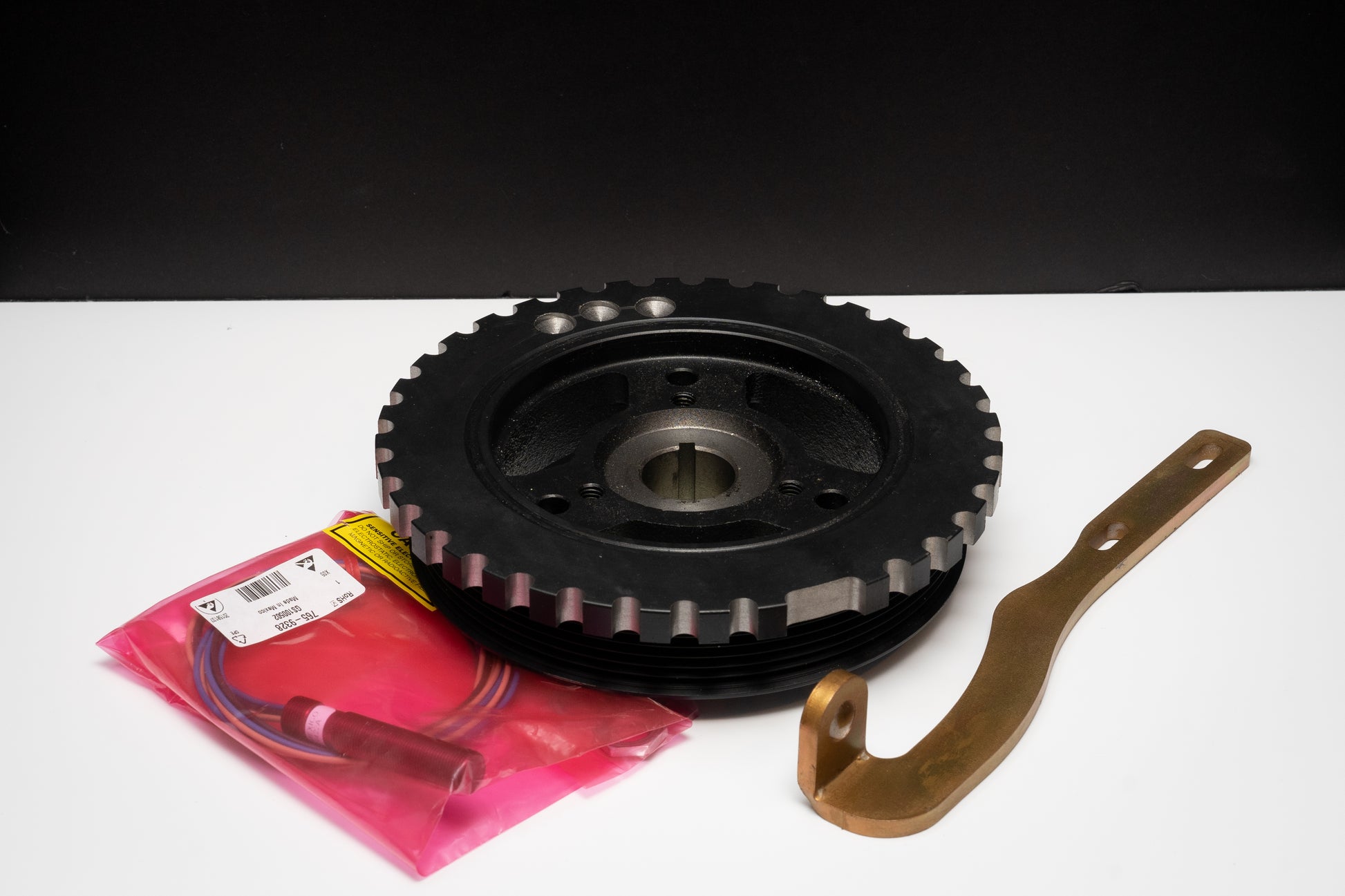

  • 36-1 Tooth Machined Damper
  • HALL Effect Sensor with pigtail
  • Black painted Sensor Mount
  • 2x 1/4-20 studs
  • 2x 1/4-20 flange nuts

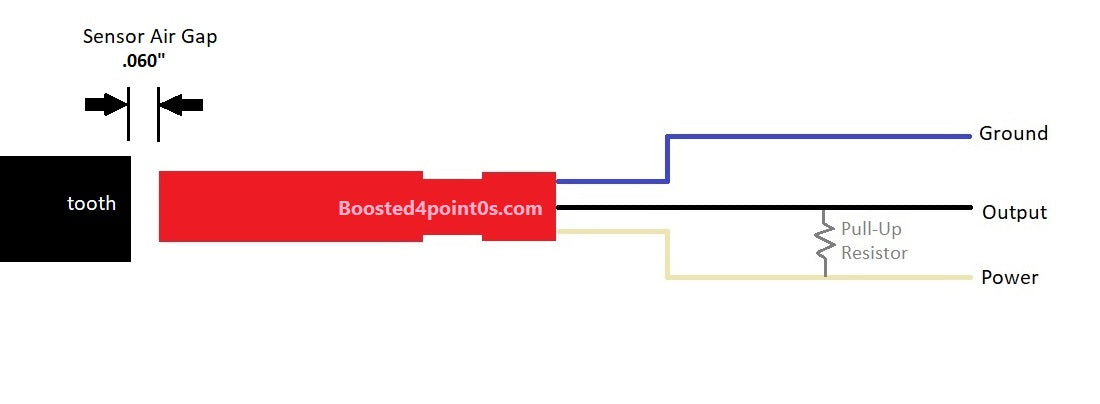

Recommended installation includes relocating two oil pan bolts and studs. Depending on your ECU, a pull-up resistor may be required. This is a resistor that is connected between the sensor power wire and the output signal wire. For installs using a 5V power supply for the sensor, a 1kΩ resistor is required. For a 12V supply, a 2.4kΩ resistor is required. It is important that the sensor ground wire be grounded at the ECU to reduce the risk of interference. An air gap of .060" between the sensor and trigger wheel teeth is recommended.


Replacement HALL Effect Sensor
